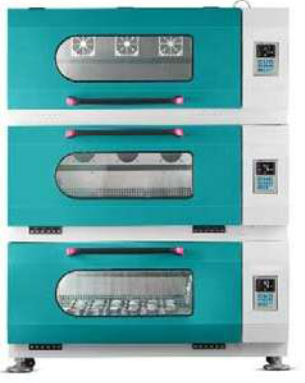

Stackable Incubator Shaker (APS‐MS315)


  • The APS‐MS315 UV Sterilization Stackable Incubator Shaker by APS is a versatile, heavy‐duty incubator shaker specifically designed for microbial culture applications with UV sterilization and stackable configurations. This incubator shaker maximizes lab efficiency, allowing up to three units to be stacked while operating independently. The APS‐MS315 features precise temperature control, quiet operation, and a robust structure, making it ideal for high‐capacity microbial culture applications. With user‐ friendly controls, advanced safety features, and IoT capabilities for remote monitoring, it is optimized for complex incubation requirements and offers reliable performance and ease of use.


Features

  • User‐Friendly Control Panel: Simple push‐button interface with LCD display for intuitive control. It allows for easy adjustments in speed, temperature, and time settings without requiring specialized training.
  • Optional Sliding Black Window: For photosensitive cultures, the sliding black window prevents UV radiation from entering, preserving light‐sensitive samples while still allowing for easy observation of the incubator’s interior
  • Double Glass Doors: Dual‐layered safety glass provides enhanced thermal insulation, ensuring stable internal temperatures and added security.
  • UV Sterilization System: Integrated UV sterilization unit provides effective sterilization between operations, maintaining a sterile environment for cultures
  • Durable Stainless‐Steel Chamber: The chamber is made of waterproof, brushed stainless steel with rounded corners for easy cleaning. All sensitive components are housed outside the chamber, enabling high humidity and temperature resistance. Refrigeration and reservoir drain port.
  • Quiet and Stable Operation: Advanced counterbalance technology and a noise‐reducing motor ensure low‐noise operation without vibration, even when stacked up to three units high
  • Vibration‐Free Magnetic Drive: Equipped with a direct magnetic drive and five‐eccentric counterbalanced shafts, allowing smooth, stable shaking even with large‐capacity flasks.
  • Flexible Stackable Design: The incubator can be stacked up to three units high, with independent control for each unit, making it space‐efficient and ideal for labs with high culture demands.
  • Enhanced Safety Features: Includes optimized PID control to prevent temperature overshoot, emergency power recall, and automatic braking to prevent abrupt speed increases when the door is opened.
  • IoT‐Enabled Smart System: Connects via cloud, enabling remote monitoring, status updates, and notifications through email/SMS. Data is accessible via USB for tracking and exporting.
  • Multi‐Step Programming: Allows unlimited multi‐step programming for temperature, speed, and incubation timing, suitable for complex growing environments. Step‐by‐step guidance for the user to resolve imbalance issues and resume optimal agitation. Multi‐user authorization
  • High Capacity and Customizable Trays: Accommodates various flask sizes with options for static incubation. Trays are removable for easy cleaning and flexible configurations.
  • Additional Environmental Control Options: Can be upgraded with CO₂ and humidity control systems, with heated glass to prevent condensation for enhanced environmental control

Specifications

Model
APS‐MS315
Use
Shaking culture of microorganisms with UV sterilization
Control Interface
Push‐button operation panel, touch screen interface (optional) with data export and graphs
Rotation Speed
20‐400 rpm with ±0.5 rpm precision
Speed Control Accuracy
±1 rpm
Shaking Throw
25mm (customizable)
Shaking Motion
Orbital
Temperature Control Mode
PID control mode/div>
Temperature Range
4°C to 80°C (20°C below ambient)
Temperature Display Resolution
0.1°C
Temperature Accuracy
±0.1°C)
Temperature Uniformity
±0.25°C at 37°C
Temperature Sensor
Pt‐100
Power Consumption
1400W
Timer
0‐999 hours
Platform Dimensions
620 x 780 mm, load capacity up to 50kg
Maximum Working Height
340mm per unit
Tray Capacity of Shake Flask
60 x 250 ml, 40 x 500 ml, 24 x 1000 ml, 15 x 2000 ml
Shaking Platform Tray Capacities
238 x 10/25 ml, 49 x 250 ml, 36 x 500 ml, 20 x 1L, 15 x 2L, 8 x 4L, 6 x 5L
Drive Mechanism
Direct magnetic drive or five‐eccentric counterbalanced shafts/div>
Motor Type
Direct magnetic drive or five‐eccentric counterbalanced shafts
Stacking Configuration
Stackable up to 3 units with independent operation
Overall Dimensions (W x D x H)s
Internal Dimensions (W x D x H)
1070 x 730 x 475 mm
Chamber Volume
315L
Sterilization Method
UV Sterilization
Ambient Temperature
5°C to 35°CW
Power Supply
8.48A115/230V ±10%, 50/60Hz
Weight per Unit
220 kg
Incubation Chamber Material
Stainless Steel
Outer Chamber Material
Painted Steel
Platform Accessibility
Slide‐out platform for easy access
Optional Features
Sliding black window for light‐sensitive samples
Safety and Alarms
Automatic braking, emergency power recall, and alarms for temperature/speed deviation
Environmental Controls
Optional CO₂ control, humidity control, and heated front glass to prevent condensation
Connectivity
Ethernet port, USB data export, and cloud access with IoT for remote monitoring
Future Upgrade Possibility
Direct installation of sticky pad, CO₂, and humidity control upgrades




Included Configuration

  • 1x Incubator Shaker Unit
  • 1x Universal Tray
  • Platform 2x Fuse
  • 1x Power Cord
  • Product Manual and Test Report
  • Stacking Kit for Multi‐Unit Configuration Optional Sliding Black Window
