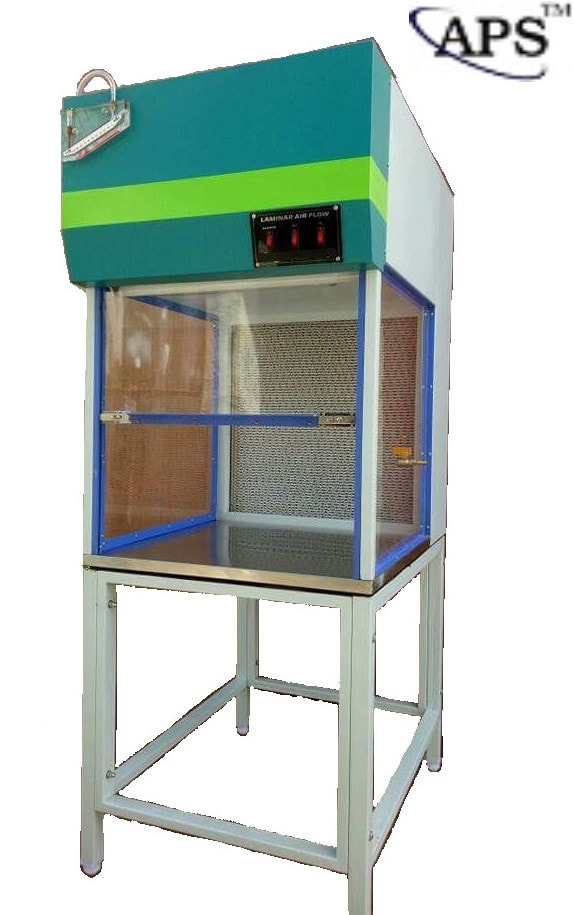

Laminar Air Flow Horizontal


APPLICATION

  • Laminar flow cabinet (horizontal / vertical) designed so as to meet the requirements of US federal standard 209 B (BS 5295) providing particle free air to meet class 100 conditions. The unit is fitted with pre-filter and HEPA filter. Air is drawn through pre-filter and is made to pass through highly effective HEPA filters having efficiency rating as high as 99.99% with cold DOP & 99.97% with hot DOP thus retaining all air-borne particles of size 0.3 micron and larger. Using a dynamic machine, the blower and motor assembly is statically and dynamically balanced ISI marked motor of 1/4 HP capacity operates with minimum noise level less than 60 dB on a Scale. The working area is illuminated by fluorescent lighting fitted to the unit. Height of the working table provides comfortable “SIT DOWN” working position for the operator.

Digital Model

  • * The cabinet are fabricated of thick mild steel / stainless steel laminated by cold rolled steel duly powder coated or SS as per requirement
    * Work table is made of SS with mirror finish which makes it easy to clean, washable & chemical resistive, corrosive free, Leak proof construction.
    * Side panels are made out of thick transparent plexus glass / acrylic sheet duly framed.
    * High efficiency pre filter
    * HEPA filter efficiency- 99.99% with cold DOP & 99.97% with hot DOP thus retaining all air-borne particles of size 0.3 micron
    * Pressure manometer to gauge the pressure drop in the unit
    * Built in two number U.V. Germicidal Light for disinfection and fluorescent light for work space illumination (60 W, 800 Lumens)
    * Utility- gas/air cock and multi point electric socket.
    * Transparent UV protected front door glass.
    * Air flow Rate: 0.35 to 0.75 m/sec.
    * Velocity should be: Approx. 90-100* FPM higher velocity available on request
    * Vibration level <2.5 micron>
    * Fitted with magnehelic differentialpressure gauge
    * Castor wheels for ease of movement.
    * Works on 230V AC supply

Model
APS-LAF-H -010
APS-LAF-H-011
APS-LAF-H -012
APS-LAF-H-013
APS-LAF-H-014
Size (feet)
2' x 2' x 2'
3' x 2' x 2'
4' x 2' x 2'
6' x 2' x 2'
8' x 2' x 2'
Size of HEPA filter
2' x 2' x 6”
3' x 2' x 6”
4' x 2' x 6”
3' x 2' x 6”
4' x 2' x 6”
No of HEPA filters
1
1
1
2
2
No of pre filters
1
1
1
2
2
Illumination
1 x 20 W
1 x 20 W
2 x 20 W
2 x 40 W
4 x 40 W
UV Germicidal light
1' x 1½'
1' x 1½'
1' x 3'
2' x 3'
2' x 3'
