Pass Box


Applications

  • * Used for sterilization under saturated steam pressure at any selected point between15 to 30 psi (adjustable), however this can be used for higher pressure up to 15 to20 psi.
    * Working temperature of 1210C.
    * These double walled units have inner chamber (Boiler) made of stainless steel SS 304 / SS 316 grade (as per demand).
    * Outer wall is covered with MS Powder Coated
    * Thick stainless steel lid is tightened by radial locking system.
    * Fitted with joint less neoprene rubber gasket.
    * Systems are hydraulically tested up to 40 p.s.i. as a Safety Measure.
    * All autoclaves are fitted with standard accessories such as pressure gauge, steam release cock, spring loaded safety valve, Vacuum Breaker and heating element.
    * Space between boiler and outer shell works as air insulation however we may incorporate mineral glass wool insulation if customer desires.
    * Heating is done through specially designed water heaters of suitable wattage to ensure optimum sterilization time in every sterilization cycle.
    * Supplied complete with S.S. basket, cord and plug.
    * Supplied with cord and plug to work on 220/230 volts A.C. Supply.

CONSTUCTIONAL FEATURES

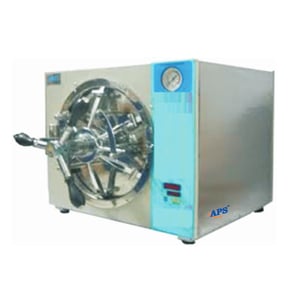

  • It is table top autoclave, Digital display sterilizing time and pressure and it has fully automatic micro-computer control system and has drying function. It can be used in hospitals, pubic healthy centers, health stations, clinics, scientific research institutes, university, laboratory and food sterilization, etc.


    Model
    APS-TTA20
    TS-TTA24
    Volume
    1Cufit
    2Cufit
    Chamber size
    10''x18''
    12''x22''
    Working Temperature
    121°C
    121°C
    Adjustment of Temperature
    121°
    121°C
    Timer
    0-99 Minutes
    0-99 Minutes
    Heat Average
    =± 1°C
    =± 1°C
