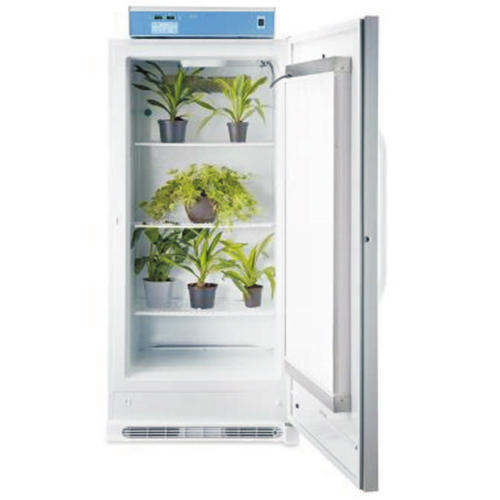

Plant Growth Chamber


APPLICATIONS

  • APS Many area of plant research require the use of a controller environment. In this way, a plant's response to different conditions can be monitored, or a particular habitat imitated. Standard propagation techniques can be greatly speeded up using a growth cabinet as well as achieving a higher success rate. Where micro propagation is being used a growth cabinet is essentialfor rooting the plantlets and adapting them to normal conditions. This plant growth cabinet is ideal for all routine propagation and research applications.

CONSTRUCTIONS

  • With a solid see thru double walled door and a full view inner plexi-glass door enables inspection and monitoring of inner chamber specimens without distributing the process temperature.
    * Excellent quality magnetic gum packing door gasket for external door.
    * User-oriented design of shelves makes you adjust each space of shelves without difficulty.
    * Forced air circulation at triple walled back by durable coaxial blower, maintains optimum temperature uniformity and homogeneity.
    * Foamed-in-place PUF insulation ensures thermal stability and reduces electrical energy consumption.
    * Caster wheel mounted for easy portability.
    * Front double walled door is provided with lock and key arrangement.
    * Door operated illumination lamp is fitted inside the chamber for easy visibility.
    * Finned tube evaporator facilitates uniform and faster cooling effects.
    * Safety Thermostate to prevent overheating.
    * Fitted with exterior illumination with fluorescent tubes/lamps.
    * Works on 220/230 Volts AC (50/60 Hz frequency)

    Technical Specifications & Ordering Informations

    Model
    APS-PGC-11
    APS-PGC-17
    APS-PGC-28
    APS-PGC-34
    Dimension Inner (WxDxH) (in mm)
    455x410x610
    505x415x830
    570x550x875
    650x580x900
    Capacity
    112 ltrs
    171 ltrs
    280 ltrs
    350 ltrs
    Volume
    4Cuft
    6Cuft
    10 Cuft
    12 Cuft
    MOC Outer
    Powder coated CRC Steel Sheet
    MOC Inner
    Chamber and trays made of Stainless Steel (SS-304)
    No. of Shelves
    2
    2
    3
    3
    Type
    Forced Convection Type
    Freezer Compressor
    Hermetically sealed air cooling compressor system
    Temperature Range
    10OC to 60OC
    Temperature Accuracy
    +1OC TO +0.1OC
    Humidity Creation
    Through sophisticated steam injection process
    Humidity range
    5% above ambient from 40% to 95%RH at cool temperatures
    Humidity Accuracy
    +5%RH To +1%RH
    Evaporator
    Finned tube evaporator for faster cooling effects
    Safety
    Over temperature limiter switch prevents overheating
    Insulation
    Foamed-in-Place PUF insulation ensures thermal stability and reduces electrical energy consumption
    Illumination
    Exterior illumination with fluorescent tubes/lamps.
    Temperature Controlle
    Microprocessor Based Digital Temperature Indicator cum Controller with LED/LCD display. for Set Value.
    (SV) & Process Value (PV). OR Microprocessor based alphanumeric LCD/LED Display Controller
    Caster Wheel
    Caster wheel mounted for easy portability.
    Humidity Controller
    Microprocessor based Digital P.I.D Digital Humidity Indicator-Cum-Controller
    Electrical Supply
    220/230V AC, 50/60Hz

Options :- Communication port with interface and data cable to download data to your PC.
