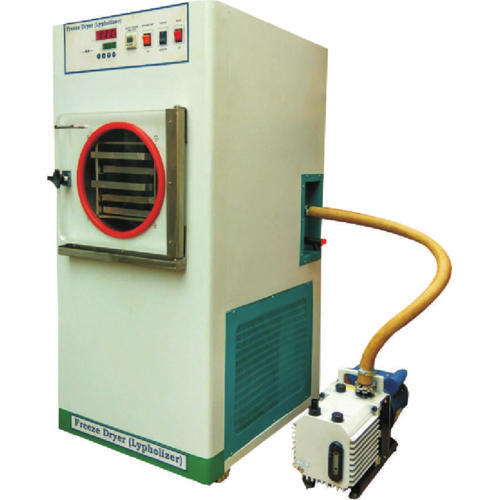

Freeze Dryer (Lyophilizer)


APPLICATION

  • APS Freeze Dryer or Lyophilizer is a such a dehydration process in which is water is removed for the frozen sample using purified vacuum condition. This process is followed by first stage Sublimation (primary drying) and last stage Desorption (secondary drying). In lyophilization process, where water in ice form on the frozen goods can be directly lyophilized into steam without melting in advance, thus the goods are dried. The substances frozen can be wellpreserved for a long time and returned to their former state once being watered without losing their biochemical properties. The freeze drying technology is especially ideal for those bio-products sensitive to antibiotic, vaccines, blood products, enzymes and hormones.

Features

3 to 15 Liters ice capacities
-40°C or -80°C temperature
CFC refrigeration system
Precise vacuum control
Corrosion resistant construction
Audio visual alarm optional
Digital PID controller
Simple to install and operate
Wide range of accessories are available
Single or two stages cooling system
Front Loading (Tray Type)
Top Loading (Vacuum prove)


Specifications:

Model
APS-LY-103
APS-LY-105
APS-LY-108
APS-LY-110
APS-LY-115
Max. ice capacity
3L
5L
8L
10L
15L
Ice condenser performance
2L / 24Hr
3.5L / 24Hr
5.5L / 24Hr
7.5L / 24Hr
10L / 24Hr
Tray
2
2
3
4
5
Cold trap temperature
-40°C or below (-80°C Optional)
Temperature Sensor
PT-100
Controls
Refrigeration ON/OFF Vacuum ON/OFF
Controller
PID controller/PLC+HMI Optional
Refrigeration System
HCFC / CFC Free, -40°C (-86°C optional)
Compresso
(hermetically sealed)
Defrost
Defrost Hot Gas
Pressure Contro
Automatic or Manual
Drain connection
Side mounted
MOC
Exterior - Powder coated, MS Exterior top - SS 304, Drying chamber - SS 304 OR SS 316,
Cold Trap Chamber - SS 304 OR SS 316, Lids - Acrylic
