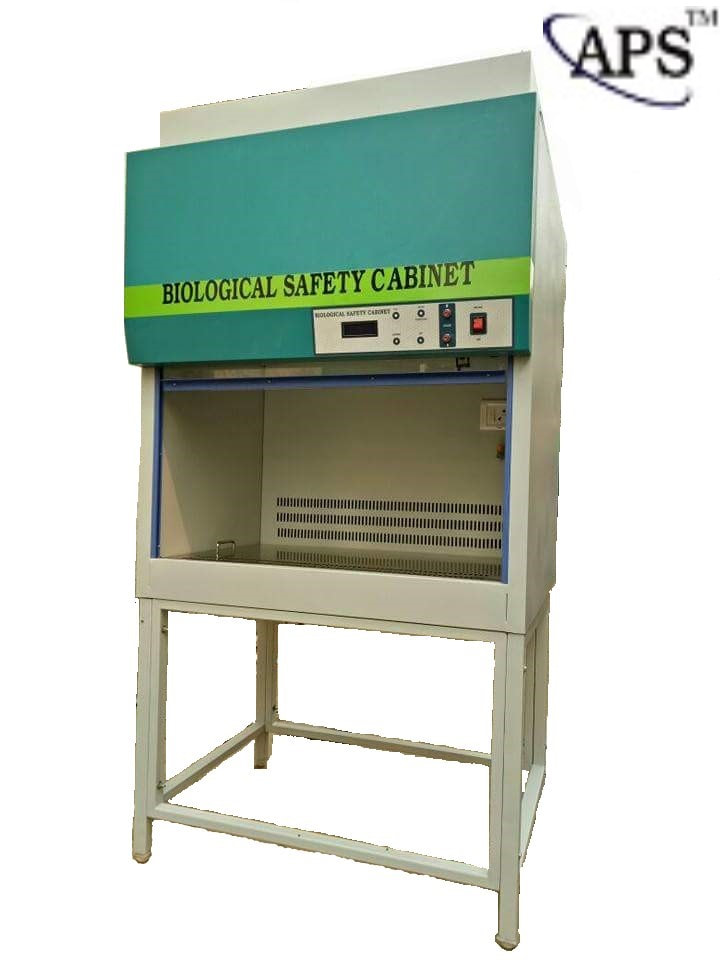

Bio Safety Cabinet


APPLICATION

  • 100 % air exhaust Negative pressure air surrounding all biological contaminated parts Class II, Type B2 cabinets are total exhaust cabinets, widely used in toxicology laboratories and similar applications where chemical effluent is present and clean air is essential. Descending air is pulled through the base of the cabinet through the perforated front and rear grilles.
    Simultaneously, air entering through the perforated front opening is pulled through the grille and exhausted immediately, 100% of the air is pulled into the facility exhaust system for appropriate treatment. Type B2 cabinet are hard-connected to an exhaust system. Negative pressure surrounds the work area with double wall plenums for protection.
    Air drawn through pre-filter is made to pass through highly effective HEPA (High Efficiency Particular Air) filters MAIN/SUPPLY FILTER having efficiency rating as high as 99.99% with cold DOP and 99.97% with hot DOP, thus retaining all air-borne particles of size 0.3 micron and larger. The highly efficient HEPA filter maintains the optimum cleanliness and purity. Being equipped with the prefilter, it can extend the life of HEPA filter. Aerodynamic airflow grills maintain safety and prevents blockage.
    U.V and fluorescent interlock available Ergonomic and comfortable sloped front window for comfortable head and elbow rest position, thus reducing fatigue Sash is counterbalanced for smooth and light weight operation with standard opening for easier access to work zone and enhanced user safety. CLASS-II design ensures PERSONNEL, PRODUCT and ENVIRONMENT PROTECTION.
  • There is no recirculation withing the work area. Room air enters through a blower/motor in the top of the cabinet and passes through a HEPA supply filter into the work area as the vertical unidirectional airflow.

TECHNICAL SPECIFICATIONS & ORDERING INFORMATIONS

Model
APS-BSC-2(B2)
APS- BSC-3(B2)
APS- BSC-4(B2)
APS- BSC-5(B2)
APS- BSC-6(B2)
Internal Dimensions (WxDxH)mm
600x600x600
900x600x600
1200x600x600
1500x600x600
1780x600x600
MOC
Internal Working Chamber : Stainless steel (SS-304) Exterior Cabinet : Cold Rolled Steel Duly Powder Coated or Stainless Steel (SS-304)
Pre-Filter
Mounted on aluminum frame, of rating 20 microns
Supply / Main Filter
HEPA (Efficiency 99.97% @0.3 microns to meet air quality ISO Class 4 equivalent to US FED STD 209 E, Class 10
Exhaust Filter
HEPA (Efficiency 99.97% @0.3 microns to meet air quality ISO Class 4 equivalent to US FED STD 209 E, Class 10
Electrical Socket
Electrical Socket is provided for using small electrical devices
Power Supply
220/230 Volts AC supply
Heavy Duty Exhaust System
Standard fitted to the system for 100% exhaust
Exhaust Tunnel/Duct (Option)
Available on per running feet basis
Basket
Stainless Steel (SS-304)
Sash Lift
Can be lifted and adjusted manuallyoC
