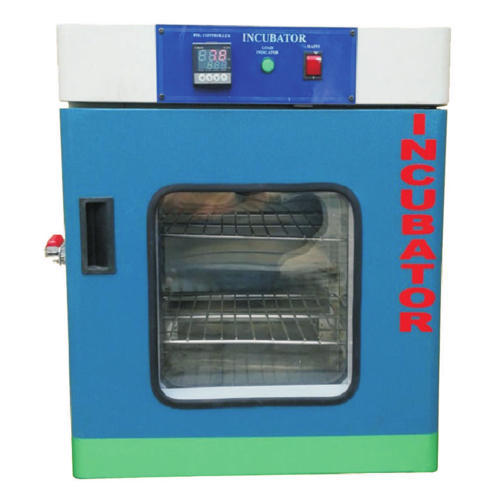

Incubator


BENEFITS & ADVANTAGES

  • Forced convection system ensures good mixing, strong dispersion and maintains higher temperature uniformity inside the chamber. Most ideal for various experiments in microbiology, Institutes, industries, R & D labs etc. Synthetic door gasket made of neoprene on the double walled door. User oriented design of shelves makes you adjust each space of shelves without difficulty.
    Adjustable two ventilation slides control inner air/ vapour circulation. Beaded heating elements are placed in ribs, at bottom and sides for uniform heat distribution.
    CONSTRUCTIONAL FEATURES Outer body made up of mild steel sheet duly powder coated. Inner chamber and perforated trays made of stainless steel (SS-304). Space between inner chamber and outer wall is filled with high grade mineral wool for minimal heat dissipation. Bigger sized units ounted on caster wheels for easy portability Door fitted with heavy duty hinges and door handle ensuringthere are no leakages through the door gasket.
    Beaded heating elements are placed in ribs, at bottom and sides, for uniform heat distribution. Synthetic door gasket made of neoprene rubber is fitted to all "MAC" units instead of asbestos. Air ventilators are also provided on the sides of the unit. To work on 220/230V AV, 50/60 Hz supply.

TECHNICAL SPECIFICATION & ORDERING INFORMATIONS
BACTERIOLOGICAL INCUBATOR DIGITAL MODEL

Model
APS-INC-28
APS-INC-45
APS-INC-95
APS-INC-125
APS-INC-224
Internal Dimensions (WxDxH)mm
300x300x300
355x355x355
455x455x455
455x455x605
600X600X600
Capacity
28 ltrs
45 ltrs
95 ltrs
125 ltrs
224 ltrs
Heat Load
0.50 KW
0.50 KW
1.00 KW
1.00 KW
2.00KW
No. of Shelves
1
1
2
2
2
Temperature Range
5°C to 70°C ±1°C
Forced Convection
Available with forced convection system (Standard Features)
Temp. Controller
Microprocessor based PID Digital Temperature Indicator cum Controller with LED Display
