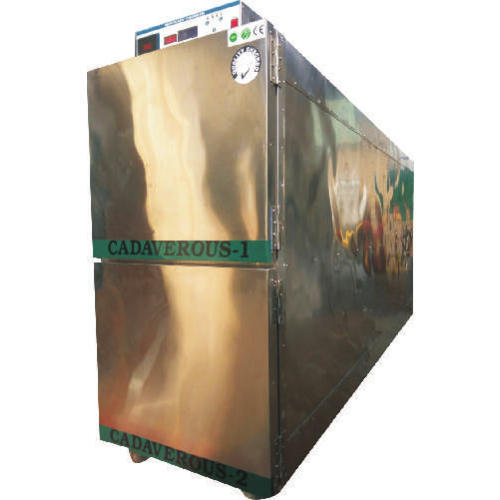

Mourtuary Refrigerator


SAFETY SYSTEM

  • * Hi-Low temperature deviation alarm.
    * Sensor Failure Indication protection.
    * Start-up delay protection for compressor.

    Digital Model

    * Hi-performance hermetically sealed compressor .
    * CFC-free ECO-FRIENDLY refrigerants.
    * High density HCFC free polyurethane insulation foam.
    * Uniformly spread evaporator imparts faster freezing and better performance on conformity of temperature.

APPLICATIONS

  • *Cooling coils for mortuary freezer are placed between foamed-in-place PUF insulation and brazed to Stainless Steel chamber eliminating any chances of FROST FORMATION and choking of evaporator.
    *Finned tube evaporator with forced air convention for mortuary refrigerator.

    CONSTRUCTION

    *Outer body of Stainless Steel. Inner Chamber of Stainless Steel. High density machine filled HCFC free polyurethane insulation foam (PUF). Specially designed latch eliminates cooling loss. Side by side chambers for bigger capacities.

    Technical Specifications & Ordering Informations

    Model (Mortuary Chamber)
    APS-MC-2
    APS-MC-3
    APS-MC-4
    APS-MC-6
    APS-MC-12
    Capacity
    2 Body
    3 Body
    4 Body
    6 Body
    12 Body
    Temperature
    2oC to 6oC
    Controller
    Microprocessor / Micro-controller based temperature controller
    Temperature Display
    Digital LED with SV and PV
    MOC Outer
    GI Powder Coated/Stainless steel Optional
    MOC Inner
    Stainless steel
    Door
    Standard hinged door with double gasket seal between the doors.
    Insulation
    High grade PUF INSULATED between outer and inner chamber for minimal thermal losses
    Body Trays
    Telescopic/Pull out trays made up of SS sheet
    Interior Lighting
    Interior fluorescent lighting
    Castors
    Castors for minimal effort mobility
    Refrigeration system
    Superior and heavy duty air cooled refrigeration system.
    Compressor
    CFC FREE ECO FRIENDLY
    Condenser
    Highly efficient condenser with automatic condensate evaporating system.
    Evaporator
    Internal evaporator system Forced draught
    Refrigerant
    Non-CFC/HCFC environmental friendly based on compressor capacity
    Air Circulation
    Forced air circulation to maintain chamber uniformity
    Door Lock
    Provided for safety and security of specimen.
    Power Supply
    220 / 230 Volts, Single Phase Supply
