Deep Freezer -40°C to -86°C

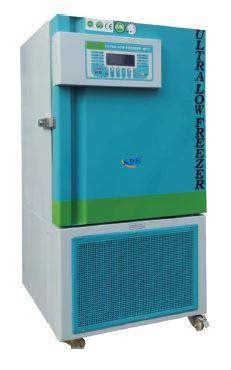

-86°C Ultra Low Temperature Freezer ( APS-FZ800)

  • Upright Ultra-low Temperature Freezer with Two-compressor cascade refrigeration system, maintaining temperatures from - 40℃ to -86℃ with 0.1℃ accuracy. Ambient temperature range: 10℃ to 32℃. Features include Accurate Temperature Control Technology, achieving -70℃ in under 60 minutes at full capacity, RFID access, keyboard lock, and password protection for 200 users


Features

  • Temperature maintenance: -40℃ to -86℃ with 0.1℃ accuracy
  • Working ambient temperature: 10℃ to 32℃
  • Accurate Temperature Control Technology
  • Achieves -70℃ in less than 60 minutes at full capacity
  • RFID access for electronic door opening
  • Keyboard lock, password protection (200 user IDs)
  • Built-in backup battery for 72-hour operation without AC power
  • Minimum 800 liters capacity
  • Loading capacity of minimum 60,000 samples(2ml)
  • Rust-free construction (interior and exterior)
  • Inner material: Stainless steel 304
  • Shelves: Adjustable, stainless steel 304
  • Visual and audible alarms for various conditions
  • Power failure protection and delay
  • Test holes for CO₂/LN2 and external monitoring
  • Universal casters and leveling feet design for convenient movement and fixation
  • Digital control panel at eye level
  • 7 inches LCD touch screen with multiple displayfeatures
  • Eco Mode & High-Performance Mode
  • Compressors: Minimum 2 cascading compressors (1 HP each)
  • Two-compressor cascade refrigeration system
  • Refrigerant: HC refrigerant
  • Noise level: ≤55 decibels
  • Certification: CE and ISO certification or equivalent
  • Wide voltage range: 187V~242V
  • Supplied with 5 KVA online UPS
  • Internal Size: 1300 x 850 x 1650 mm (WDH)
  • External Size: Less than 1600 x 1260 x 2300 mm (WDH)
  • Manual defrost system
  • A4 paper slot, hand-written art-board
  • RS485 port for data communication
  • Castors for easy moving and fixation
  • Removable condenser front cover
  • Test hole for temperature monitoring systems


Highlights

  • Fast Refrigeration Targeted
  • Energy-saving & Environmentally Friendly
  • Super-stable Cooling System
  • Advanced thermal insulation
  • Multi-layer sealing design
  • Graphical curve for historical temperature data
  • Removable heat exchanger


Specifications

Features
Details
Basic Colling type
Direct Colling
Defrost
Manual
Temperature range
-40°C to -86°C
Ambient temperature
10°C to 32°C
Sensor
PTC
Compressor brand/QTY
SECOP/2
Capacity(L/cu.ft)
800 / 28.25
Cnsulation
PURF+VIP
Inner door material/QTY
Foamed SUS304 / 2
Racks
18(5x4) + 6(6x4)
Boxes (2 Inches)
504
Samples(2ml)
50,400
Access port QTY/Dia
1 / 25mm
USB Access
Yes
Remote alarm Access
RS232/485
Outside material
Color sprayed steel
Inside material
SUS304
Castor
Universal
Refrigeration System
Cascade system
Refrigerant
HC (R290 & R170)
Temp. controller
Microprocessor
Alarms
High/low temperature, Power failure, Abnormal voltage, Sensor error, Door ajar, Filter screen check, Thermostat failure, Low battery, Condenser clean, High ambient temperature
Power failure backup (alarm)
72 hours
Electrical Data
Voltage frequency(V/Hz)
187V~242V 50Hz/60Hz
Power(W)
710W
Current(A)
8.48A
Power consumption
14.98kWh/24h
Noise(db)
55
Dimensions
Exterior size(WDH) (mm)
1600 x 1260 x 2300
Interior size(WDH) (mm)
1300 x 850 x 1650
Wight (kg)
300 / 370
